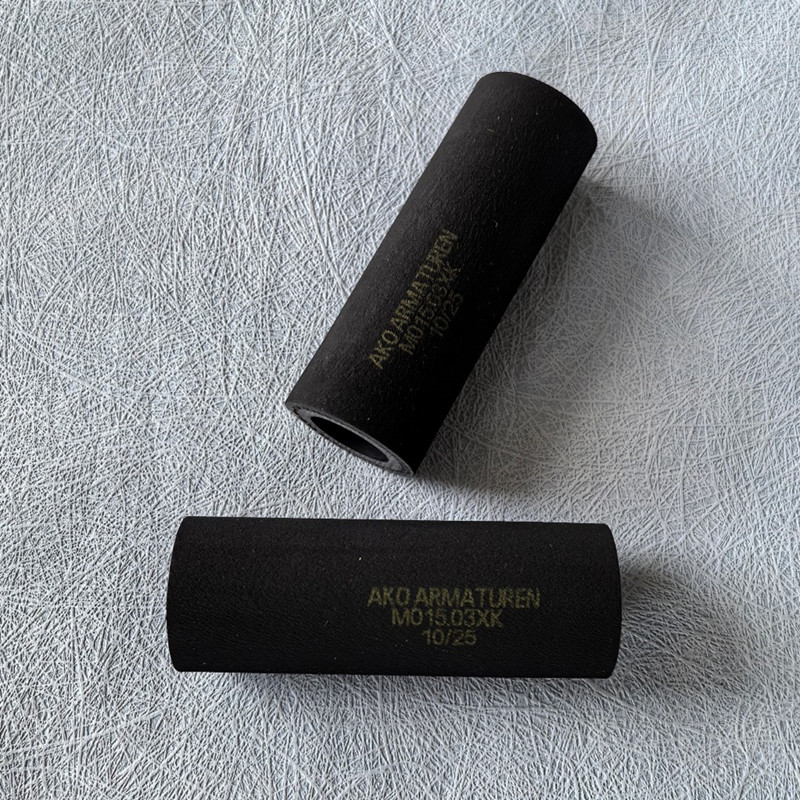

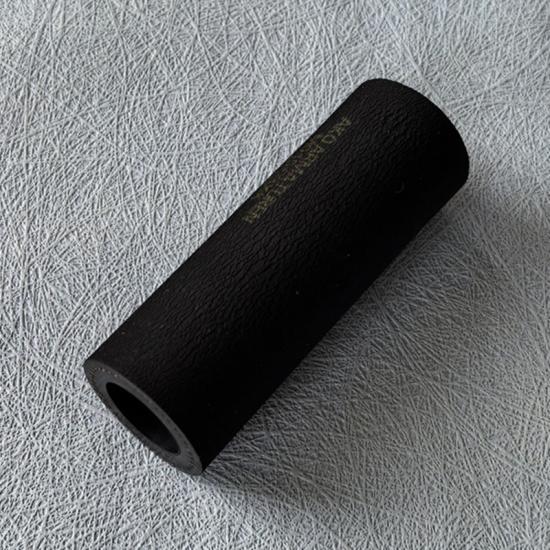

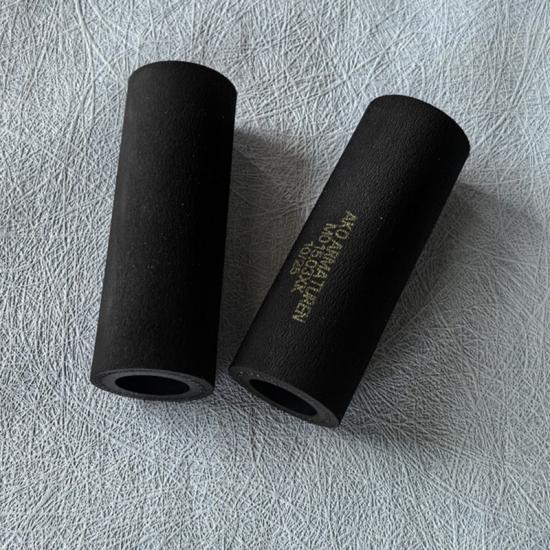

1006256 Gema PP06 pinch valve sleeve NW15mm
Brand: Gema
Code: 1006256
Type: original & non original
It is used on Gema Optifeed PP06 powder pump.
OptiFeed PP06 powder pump
OptiFeed PP06 powder pump – complete, with parts set, without powder hose 1006 245
OptiFeed PP06-E powder pump – complete, with parts set, without powder hose 1007 680
1 Pneumatic group – complete (see corresponding spare parts list)
2 Valve board – complete (without items 2.1, 2.2, 2.3) 1006 540
2.1 Spacer sleeve – dia. 3.1/6x15 mm 1006 987
2.2 Locknut – M3 262 498
2.3 Washer – dia. 3.2/7x0.5 mm 201 944
3 Connecting cable for valves 1006 967
4 Plug cap – dia. 8 mm 238 023
5 Powder chamber – see corresponding spare parts list
6 Filter cartridge, complete – 8-8 mm 1006 670
7 Filter cartridge, complete – 8-6 mm (not shown) 1006 669
8 Pressure regulator – 0.5-8 bar, G1/8" 1006 241
9 Pressure gauge – 1 ... +9 bar - 1/8" 1005 827
10 Protection cap for connector socket 206 474
11 Protection cap for plug 206 458
12 Silencer – 1/2" 1006 969
Connecting cable – L=5 m (not shown) 1003 651
Connecting cable – L=30 m (not shown) 1004 112
Connecting cable for LM02 level sensor – L=6 m (not shown) 1003 229
V 02/18
OptiFeed PP06 Spare parts list • 53
OptiFeed PP06 powder pump
OptiFeed PP06 powder pump
5
4
3 1
6
8 8
9 9 9
2
12
11 10 V 02/18
54 • Spare parts list OptiFeed PP06
OptiFeed PP06 powder pump – pneumatic group
1 End plate 1006 239
2 Solenoid valve 1006 237
3 Supply station 1006 234
4 Solenoid valve 1006 236
5 Auxiliary station 1006 235
6 Solenoid valve 1006 238
7 End plate 1006 240
8 Precision pressure regulator – 1/8", 0,5-8 bar 1006 986
9 Silencer – dia. 12 mm 1006 707
10 Vacuum generator 1006 242
V 02/18
OptiFeed PP06 Spare parts list • 55
OptiFeed PP06 powder pump – pneumatic group
OptiFeed PP06 powder pump – pneumatic group
1
2
3
4
5
6
3
6
7
10
9
8
4
6 V 02/18
56 • Spare parts list OptiFeed PP06
OptiFeed PP06 powder pump – powder chamber

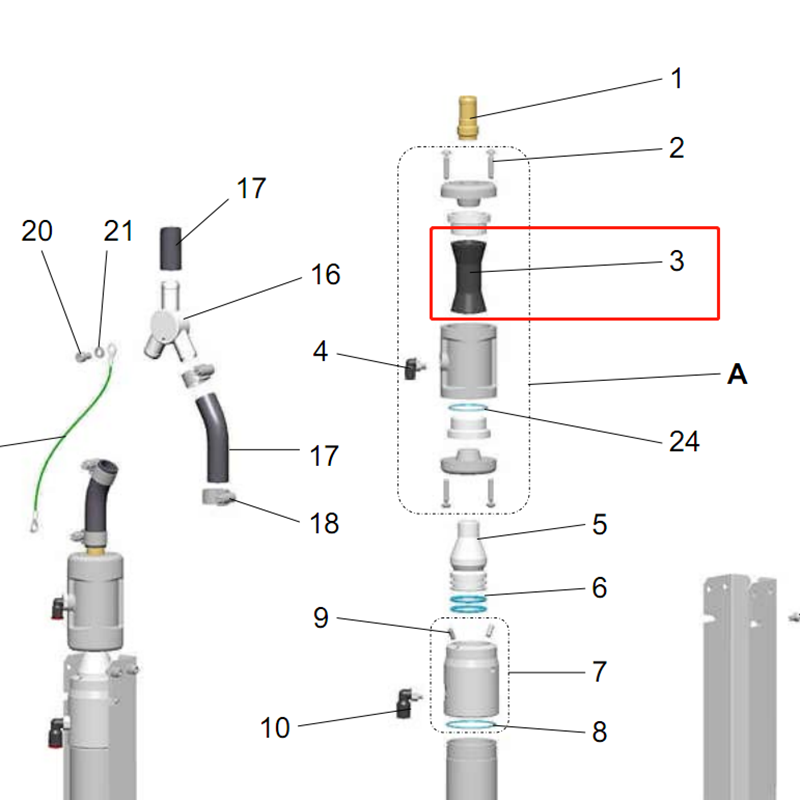

A Pinch valve – NW15 mm 1006 255
1 Hose connection – ID15 1003 301#
1.1 Hose connection – ID15 (Enamel version) 1006 591#
2 PT-screw – 50x25 mm 1003 558
3 Sleeve – NW15 mm 1006 256#
4 Elbow joint – 1/8"-6 mm 265 691
5 Connecting nipple 1006 495
5.1 Connecting nipple (Enamel version) 1006 493
6 O-ring – Ø 30x3 mm 1003 533#
7 Cone connection – complete, incl. Pos. 8 and 9 1006 254
7.1 Cone connection (Enamel version) – complete, incl. Pos. 8 and 9 1007 673
8 O-ring – Ø 39x3 mm 1006 278
9 Allen set screw – M5x12 mm 1006 498
10 Elbow joint – 1/8"– Ø 8 mm 251 372
11 O-ring – dia. 46x1.5 mm 1006 279#
12 Jacket tube 1006 251
13 Filter element – 40/30 mm 1006 252#
14 Sealing plug – 1/8" 263 826
15 Countersunk head screw – M5x10 mm 214 671
16 Y-piece 1006 962
17 Powder hose – Ø 16/23 mm 1010 040*#
17.1 Powder hose – Ø 16/23 mm (Enamel version) 1008 087*#
18 Hose clamp 17-25 mm 223 085
19 Grounding cable – complete 1006 990
20 Allen cylinder screw – M6x10 mm 216 399
21 Fan-shaped washer – A-type, M6 216 054
22 Cap screw – M5x12 mm 239 941
23 Fan-shaped washer – A-type, M5 231 045
24 O-ring – dia. 32x1.5 mm 1006 264#
Maintenance set for PP06 powder pump (not shown) 1006 267
