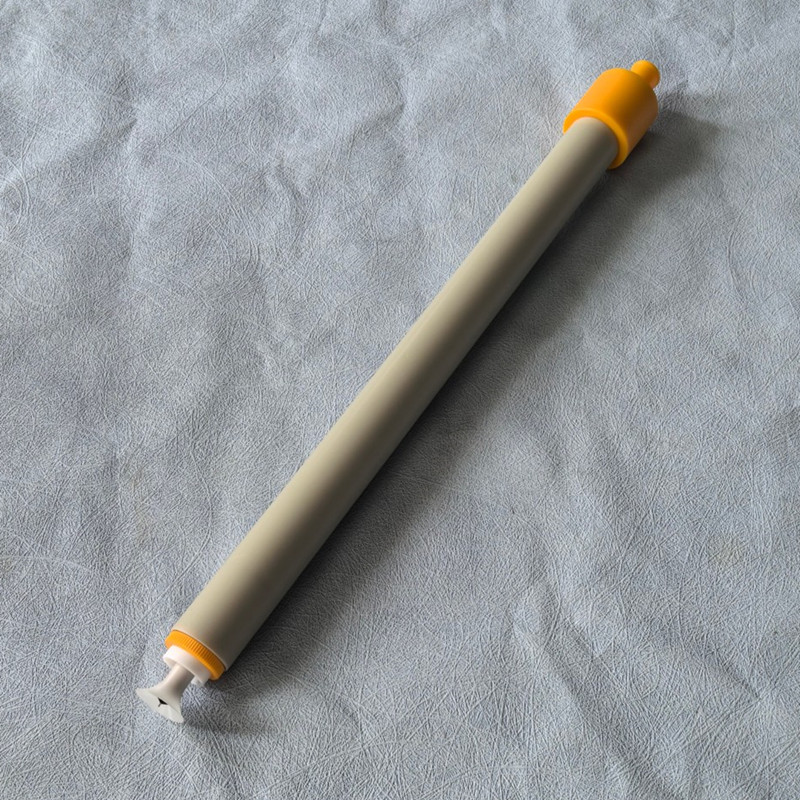

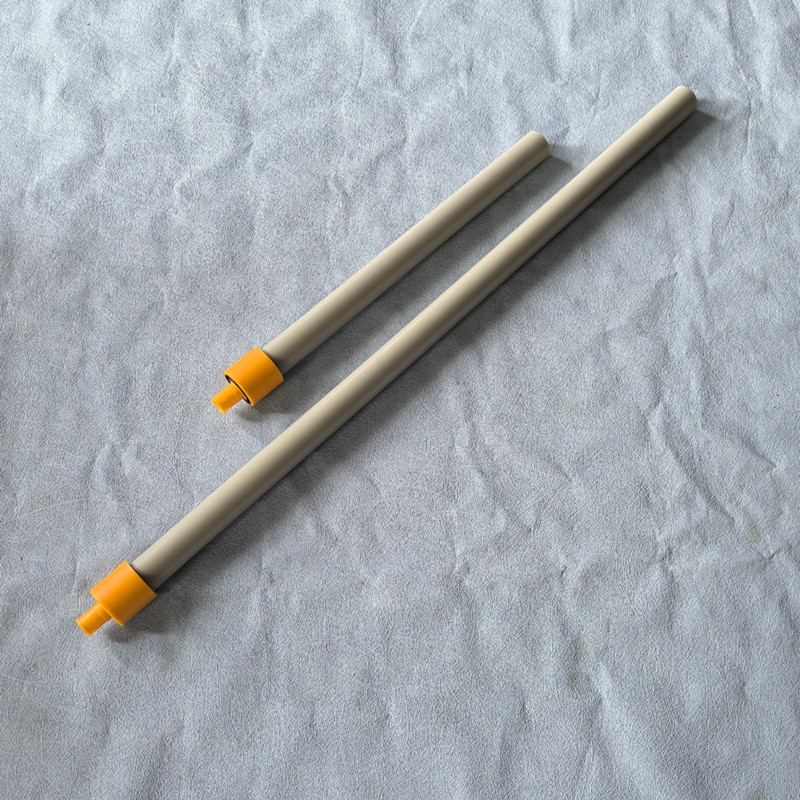

Gema Nozzle Extension Tube 300-3000mm 720007

Gema Gun Nozzle Extension 300-3000mm

Nozzle Extension special length 300-3000mm

720007 Gema Nozzle Extension tube 300-3000mm length

Part no.  Description  Length
720 007  Nozzle extension cpl.    300 – 1400mm
720 008  Nozzle extension cpl.    1401 – 2200mm
720 009  Nozzle extension cpl.    2201 – 3000mm

Nozzle extension cpl. Flat Jet
Part no.  Description  Length
720 010  Nozzle extension cpl. Flat jet     300 – 1400mm  without supporting tube
720 012  Nozzle extension cpl. Flat jet     1401 – 2200mm  without supporting tube

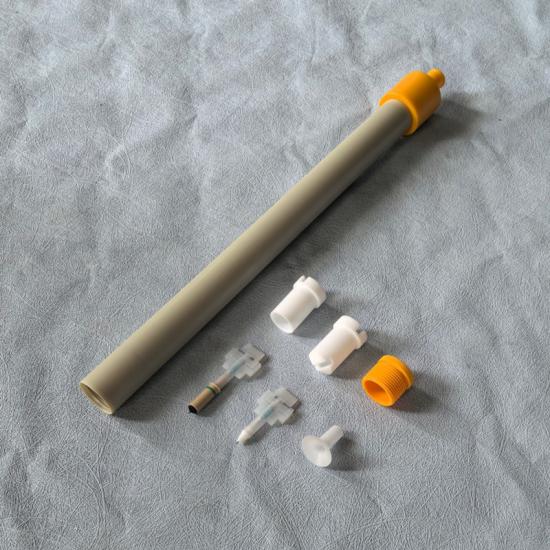

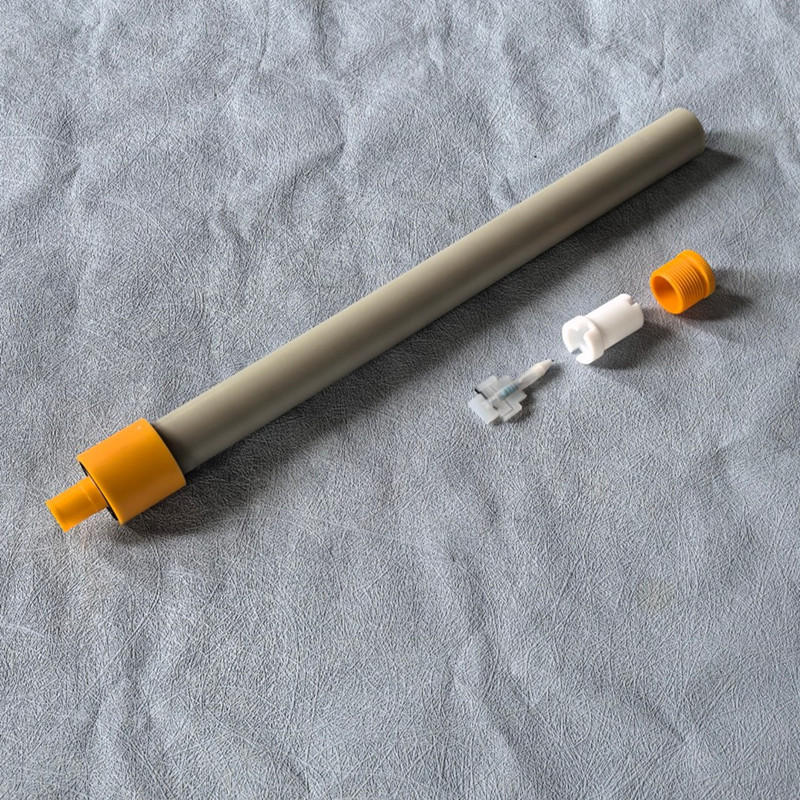

Components of part no. 720 010 and 720 012
Part no.  Description  Length
720 007 – 720 008  Nozzle extension cpl.    300 – 2200mm
332 690  Electrode holder cpl. Flat jet
332 550  Flat jet nozzle
396 885  Nozzle screw
382 973  Union nut

Nozzle extension cpl. Round Jet
Part no.  Description  Length
720 011  Nozzle extension cpl. Round jet    300 – 1400mm  without supporting tube
720 013  Nozzle extension cpl. Round jet    1401 – 2200mm  without supporting tube

Components of part no. 720 011 and 720 013
Part no.  Description  Length
720 007 – 720 008  Nozzle extension cpl.    300 – 2200mm
332 712  Electrode holder cpl. Round jet
332 569  Round jet nozzle
331 333  Deflector D=24mm
396 885  Nozzle screw
382 973  Union nut


Nozzle Extension special  300 – 3000mm incl. supporting tube
Maximum length:      L = 3000mm
Diameter Supporting tube:  D = 35mm
Old part number:    346349
Part no.  Description  Length
720 023  Supporting tube    300 – 1400mm
720 024  Supporting tube    1401 – 2200mm
720 025  Supporting tube    2201 – 3000mm

The supporting tube is recommended from a length beginning with 1600mm!
Nozzle extension cpl. Flat Jet incl. supporting tube
Part no.  Description  Length
720 014  Nozzle extension cpl. Flat jet     300 – 1400mm  incl. supporting tube
720 016  Nozzle extension cpl. Flat jet     1401 – 2200mm  incl. supporting tube
720 018  Nozzle extension cpl. Flat jet    2201 – 3000mm  incl. supporting tube

Components of part no. 720 014 / 720 016 / 720 018
Part no.  Description  Length
720 007 – 720 009  Nozzle extension cpl.    300 – 3000mm
346 349  Supporting tube    300 – 3000mm
332 690  Electrode holder cpl. Flat jet
332 550  Flat jet nozzle
396 885  Nozzle screw
382 973  Union nut

Nozzle extension cpl. Round Jet incl. supporting tube
Part no.  Description  Length
720 015  Nozzle extension cpl. Round jet    300 – 1400mm  incl. supporting tube
720 017  Nozzle extension cpl. Round jet    1401 – 2200mm  incl. supporting tube
720 019  Nozzle extension cpl. Round jet    2201 – 3000mm  incl. supporting tube

Components of part no. 720 015 / 720 017 / 720 019
Part no.  Description  Length
720 007 – 720 009  Nozzle extension cpl.    300 – 3000mm
346 349  Supporting tube    300 – 3000mm
332 712  Electrode holder cpl. Round jet
332 569  Round jet nozzle
331 333  Deflector D=24mm
396 885  Nozzle screw
382 973  Union nut
