OptiSelect Pro GM04-E – spare parts list
A

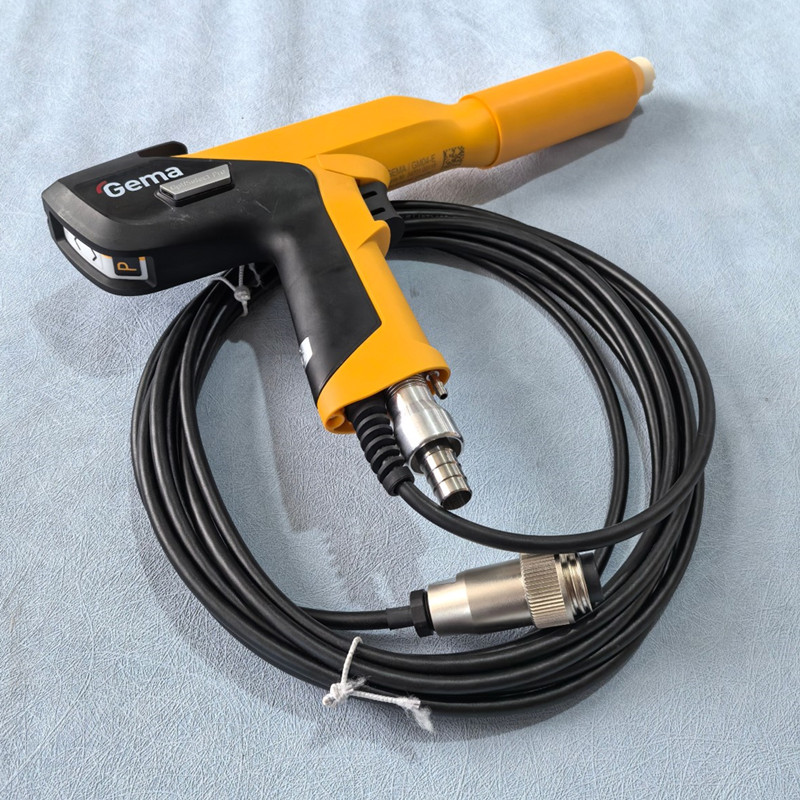

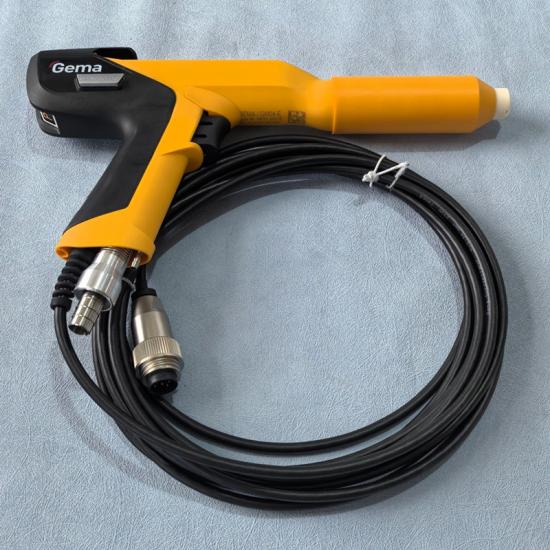

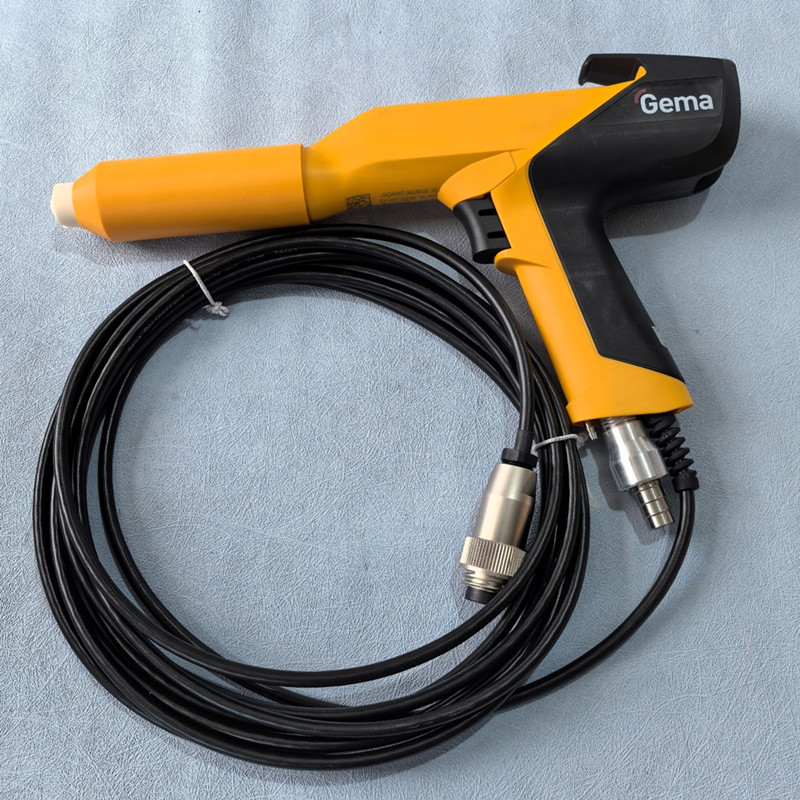

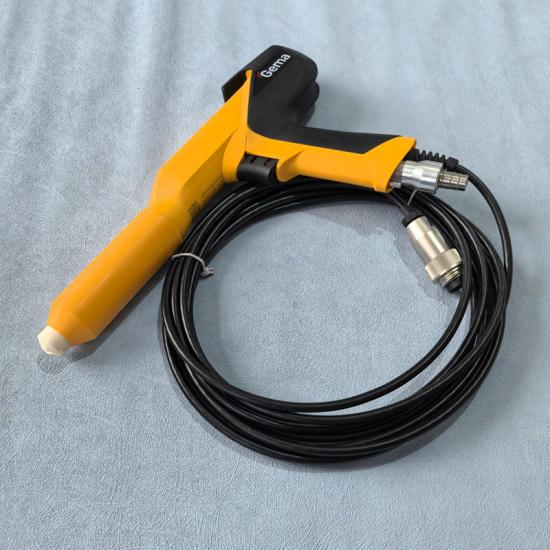

OptiSelect Pro GM04-E manual powder gun – complete
incl. flat jet nozzle, brush and parts kit, without powder hose, with:
gun cable 6 m, rinsing air hose 6 m, negative polarity (–) 1019 531
gun cable 12 m, rinsing air hose 12 m, negative polarity (–) 1019 532
B Manual powder gun body OptiSelect Pro GM04-E (incl. cascade) with:
Gun cable 6 m, negative polarity (–) 1019 526
Gun cable 12 m, negative polarity (–) 1019 527
1 Gun body – complete 1019 521
2 Cascade – complete, negative polarity, incl. pos. 3 1016 911
3 Buffer 1017 704
4 Print holder – complete 1017 690
5 Rear part 1017 683
6 Trigger – complete 1017 686
7 Trigger cover 1017 688
8 Countersunk-head screw – M4x6 mm 1017 698
9 SuperCorona connection 1017 684
10 Gun cable 6 m – complete 1016 952
Gun cable 12 m – complete 1016 953
11 Rinsing air connection 1017 656
11.1 Rinsing air hose 100 854*
12 Powder tube holder – complete 1012 539#
13 Compression spring 1001 488
14 Clip ring 1007 960
15 Hose connection – complete (incl. pos. 15.1) 1019 519#
15.1 O-ring for pos. 15 1000 822#
16 Threaded sleeve (see corresponding spare parts list)
17 Nozzle (see corresponding spare parts list)
18 Cable protection 1017 685
19 Screw – M3x20 mm 1017 674
20 Contact strip 1018 707
21 Fitting bush 1018 708
22 Cascade buffer 1023 235
Cleaning brush – Ø 12 mm (not shown) 389 765 Rev. 00 01/20
OptiSelect Pro GM04-E Spare parts list • 41
Parts set (not shown), consisting of: 1012 544
Cable clamp 303 070
O-ring 1000 822#
Powder hose – Ø 16/11 mm (not shown) 103 128*#
Nozzle combinations
1 Flat jet nozzle NF28-E – complete 1009 430#
2 Fixation piece NF28-E – complete 1009 429#
3 Flat jet nozzle set (without pos. 5.1) 404 225#
4 Contact ring 318 760#
5 Electrode holder – complete (ETFE) 404 209#
5.1 Electrode holder – complete (PTFE) 406 058#
6 Flat jet nozzle 404 128#
7 Threaded sleeve PU04-E-NF – complete 405 728
10 Round jet nozzle NS11-E – complete 1009 440#
11 Deflector rod NS11-E – complete 1002 249#
12 Muzzle NS11-E – complete 1009 439#
13 Threaded sleeve PU04-E-NS – complete 405 736
14 Deflector – Ø 15 mm 400 262#
14.1 Deflector – Ø 24 mm 400 181#
14.2 Deflector – Ø 28 mm 400 254#
14.3 Deflector – Ø 32 mm 400 238#
14.4 Deflector – Ø 50 mm 400 246#
20 Extension PE08-E-150 – complete, 150 mm 1010 501#
20.1 Extension PE08-E-300 – complete, 300 mm 1010 502#
