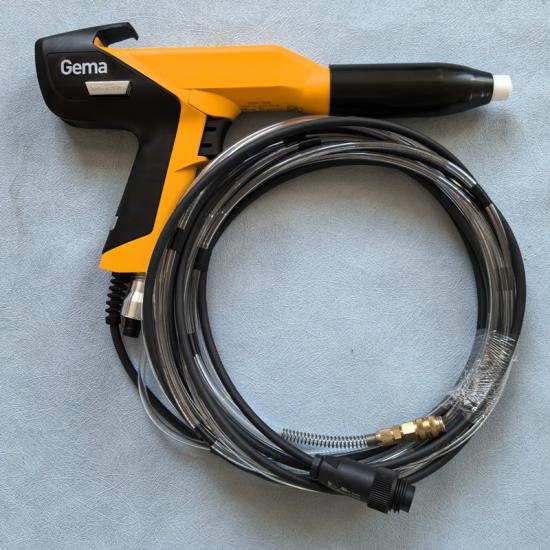

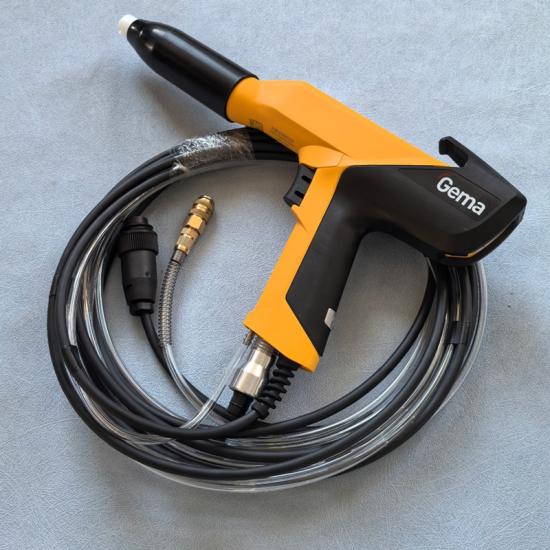

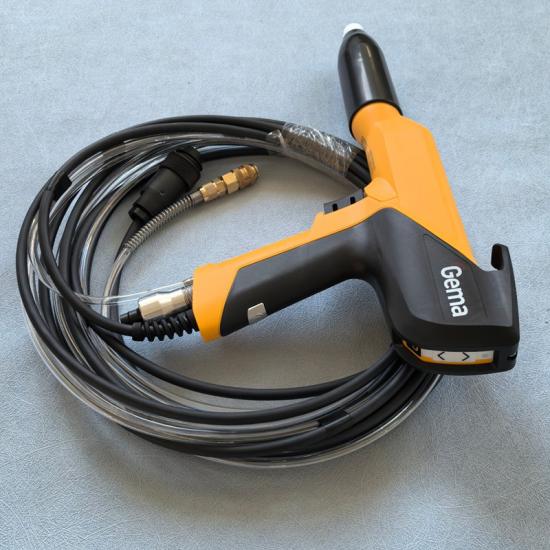

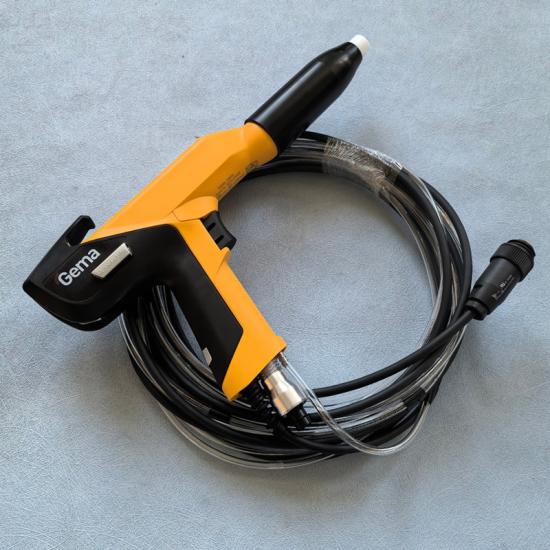

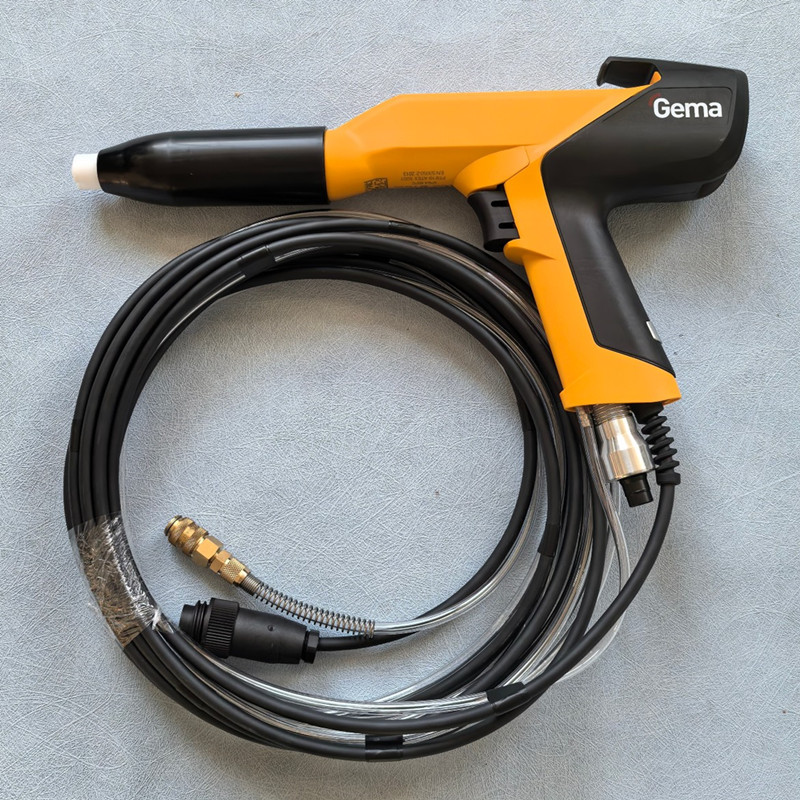

1016971 Gema manual powder gun GM04
Code: 1016971
Type: original & non original
complete, negative polarity, (incl. gun cable 6m, purge air hose 6m, flat jet nozzle, brush and parts set, without powder hose). work with optiflex PRO powder coating equipment.

A
 incl. flat jet nozzle, brush and parts kit, without powder hose, with:

  gun cable 6 m, rinsing air hose 6 m, negative polarity (–)  1016 971
  gun cable 12 m, rinsing air hose 12 m, negative polarity (–)  1016 972
  gun cable 6 m, rinsing air hose 6 m, positive polarity (+)  1016 973
  gun cable 12 m, rinsing air hose 12 m, positive polarity (+)  1016 974
B  Manual powder gun shaft OptiSelect Pro GM04 (incl. cascade) with:
  Gun cable 6 m, negative polarity (–)  1018 700
  Gun cable 12 m, negative polarity (–)  1018 701
  Gun cable 6 m, positive polarity (+)  1018 702
  Gun cable 12 m, positive polarity (+)  1018 703
1  Gun body – complete  1017 680
2  Cascade – complete, negative polarity, incl. pos. 3  1016 911
  Cascade – complete, positive polarity, incl. pos. 3  1016 912
3  Buffer  1017 704
4  Print holder – complete  1017 690
5  Rear part  1017 683
6  Trigger – complete  1017 686
7  Trigger cover  1017 688
8  Countersunk-head screw – M4x6 mm  1017 698
9  SuperCorona connection  1017 684
10  Gun cable 6 m – complete  1016 952
  Gun cable 12 m – complete  1016 953
11  Rinsing air connection  1017 656
11.1  Rinsing air hose  100 854*
12  Powder tube – complete  1007 958 #
13  Compression spring  1001 488
14  Clip ring  1007 960
15  Hose connection Ø 11-12 mm – complete (incl. pos 15.1)  1001 340 #
  Hose connection Ø 9-10 mm – complete (incl. pos 15.1)  1002 030 #
15.1  O-ring for pos. 15  1000 822 #
16  Threaded sleeve (see corresponding spare parts list)
17  Nozzle (see corresponding spare parts list)
18  Cable lock  1017 685
19  Screw – M3x20 mm  1017 674
20  Contact strip  1018 707
21  Fitting bush  1018 708

Cleaning brush – Ø 12 mm (not shown)  389 765
Parts set (not shown), consisting of:  1008 302
Multi-spray adapter  1003 634#
Cable clamp  303 070
Hose connector – complete, for hose interior Ø 9-10 mm  1002 030

Powder hose – Ø 10 mm (not shown)  1001 673*#
Powder hose – Ø 11 mm (not shown)  105 139*#
PowerClean™ module (Option)

  PowerClean module – complete  1009 528
1  Elastomer valve  1000 089#
2  O ring – Ø 16x2 mm, anti-static  1007 794#
3  Fluidizing tube bearing  1007 356
4  Fluidizing tube  1007 355
5  Retaining bracket  1009 524
6  O-ring – Ø 27x2 mm  1009 525
SuperCorona

1  SuperCorona PC..   1018 291#
